Parker Hannifin

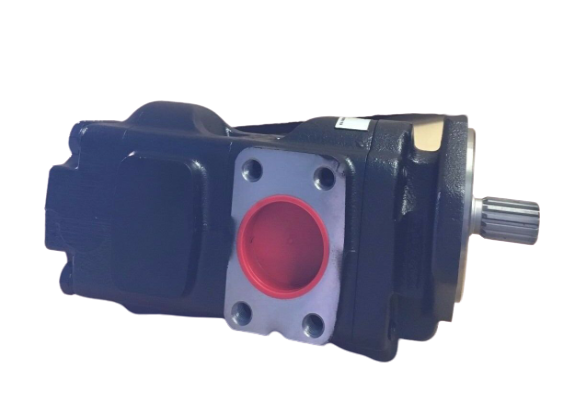

333/C5234 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV

333/C5234 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV

54 in stock

Regular price €672,48 EUR
Regular price Sale price €672,48 EUR
Sale Sold out
Tax included.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 220/925586  - 333/C5234 -  333/G5392

Weight

  • 26KG

Machine Fitment

  • PUMP 29/23 CCR MAIN HYDRAULIC 214e/3C 14 Centremount Economy "e" 9812/0010
