ASA 0177AA49CC CC COOLER 230/400V 50Hz AC 60LPM
ASA 0177AA49CC CC COOLER 230/400V 50Hz AC 60LPM
Out of stock
PRICE EXCL. VAT
- Super Fast Worldwide Shipping Via Trusted Couriers
- Make Significant Savings Against OEM Parts
- Contact Our Expert Sales Team For Product Advice
- Bulk Purchase Discount Available On All Products. Contact Our Sales Team To Discuss Your Requirements.
Couldn't load pickup availability

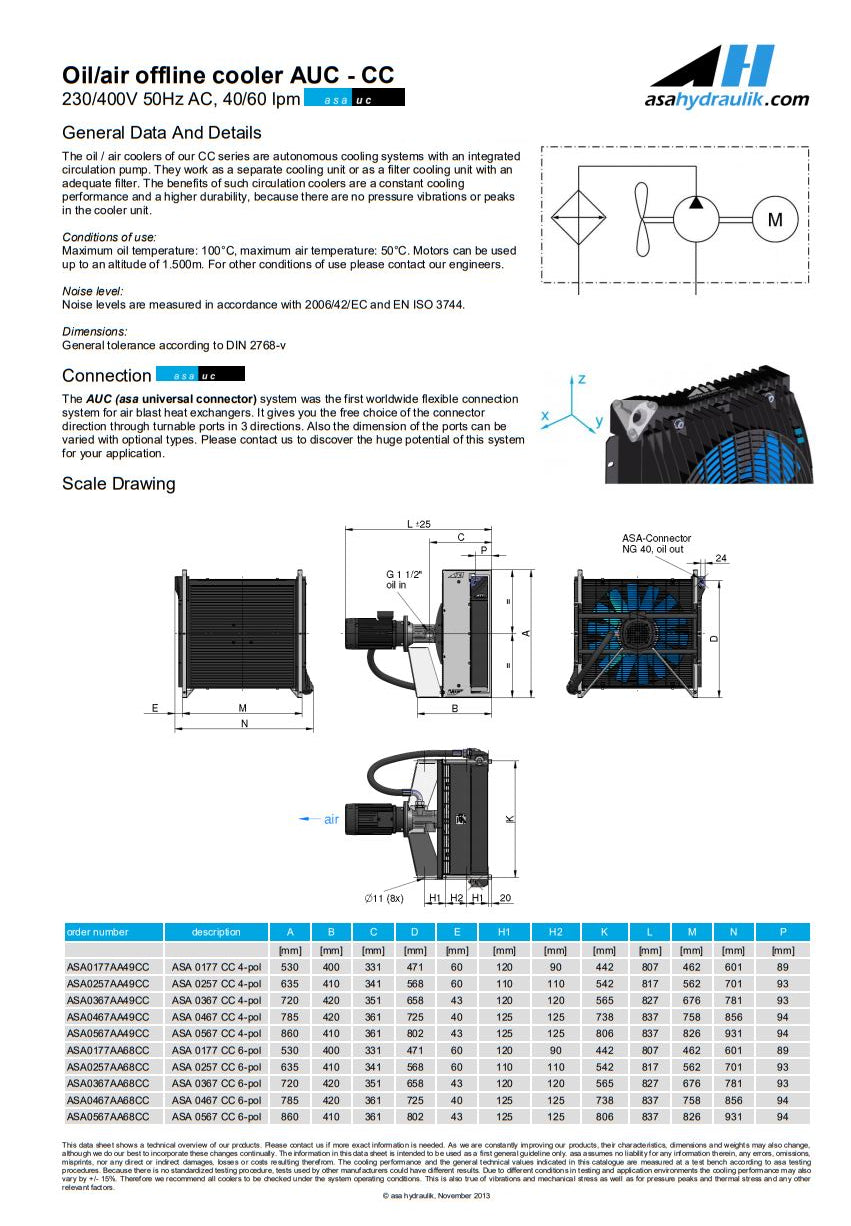

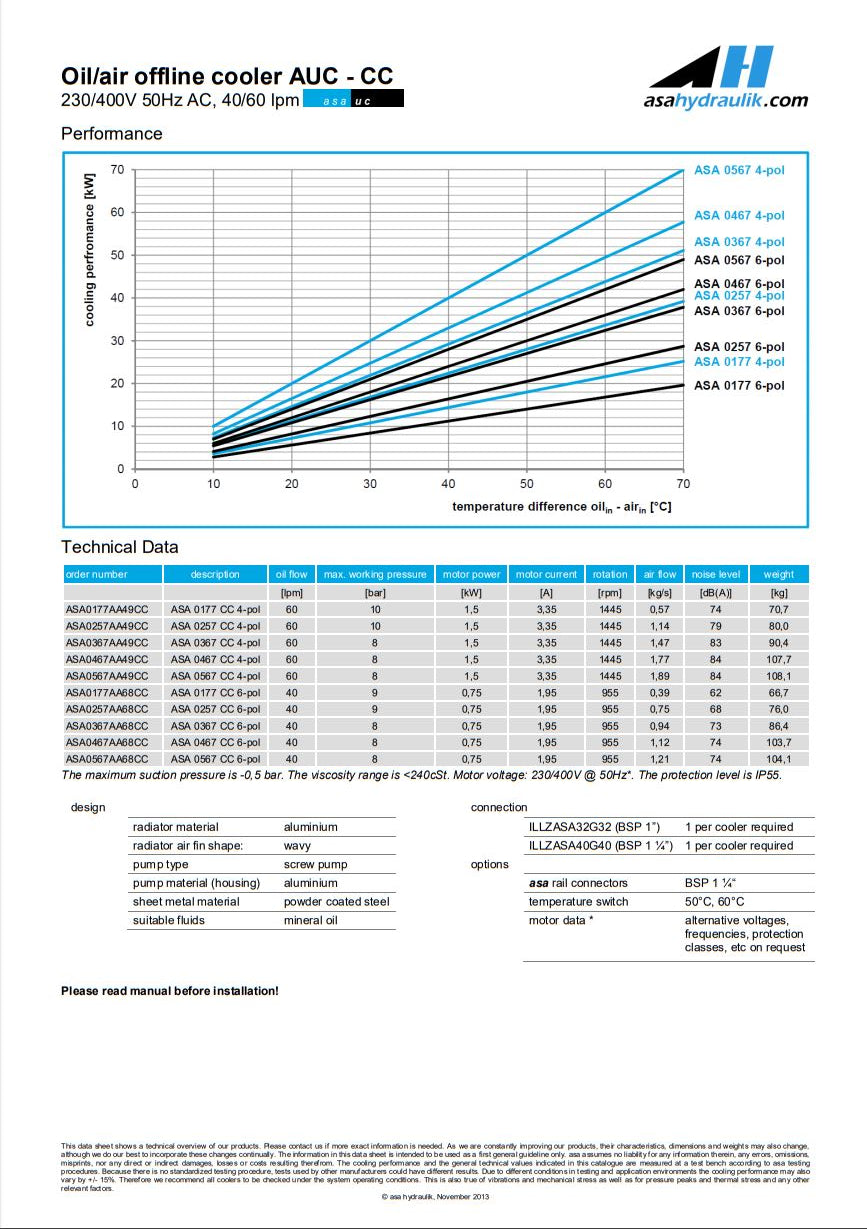

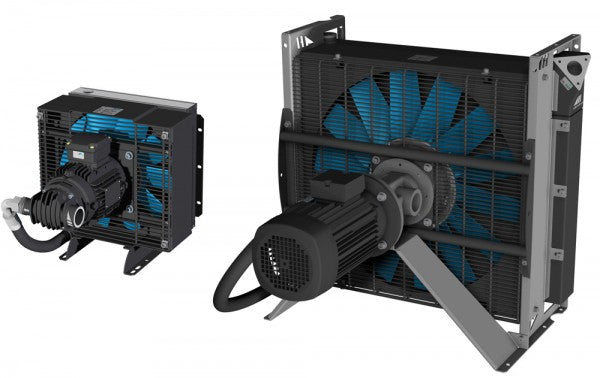

Oil/air offline cooler - CC 230/400V 50Hz AC
The oil / air coolers of our CC series are autonomous cooling systems with an integrated circulation pump. They work as a separate cooling unit or as a filter cooling unit with an adequate filter. The benefits of such circulation coolers are a constant cooling performance and a higher durability, because there are no pressure vibrations or peaks in the cooler unit.
Conditions of use: Maximum oil temperature: 100°C, maximum air temperature: 50°C. Motors can be used up to an altitude of 1.500m.
For other conditions of use please contact our engineers.
Noise level: Noise levels are measured in accordance with 2006/42/EC and EN ISO 3744. Dimensions: General tolerance according to DIN 2768-v
