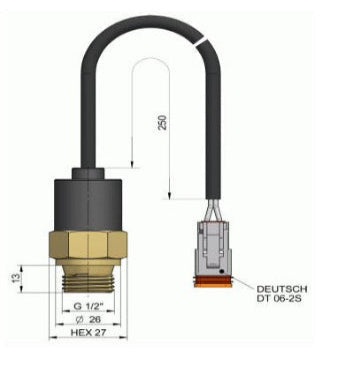

Operating temperature: 50°C +/-5°C (122°F +/-9°F)
Differential: 10°C (18°F)
Housing: Material: brass OT58
Protection: IP 67
Any mounting position
Weight: 0,13kg (0,29lbs)
max. torque: 50Nm (37lbf ft)
Measurement output: Contact: N.O.
Connection: plug connection DT 06-2
(make Deutsch)
Maximum current:
12V DC: 10A
24V DC: 10A
120V AC: 15A
240V AC: 10A
Number of cycles: 100.000
Ambient conditions: Oil temperature range:
-20 to +100°C (-4 to +212°F)
Ambient temperature range:
-20 to +85°C (-4 to +185°F)
Accessories: Temperature control ILLZTC12, ILLZTC24
Fan switch box ILLZKL29
The new temperature switches with IP69K protection are available with 3 different temperature settings. In connection to the control units (ILLZTC12-2K for 12V or ILLZTC24-2K for 24V) the fan starts according to the switch temperature on a soft start curve, extending the life time of the components.
