Parker Hannifin

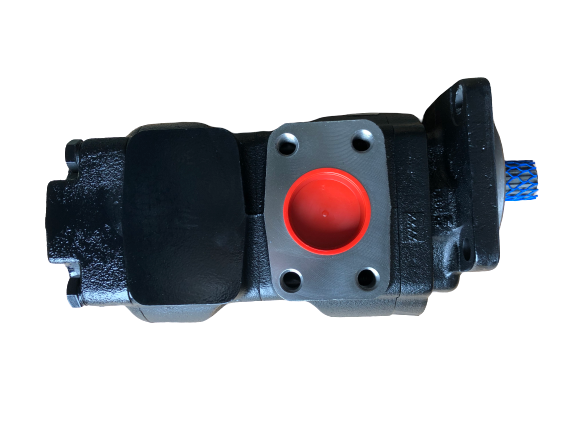

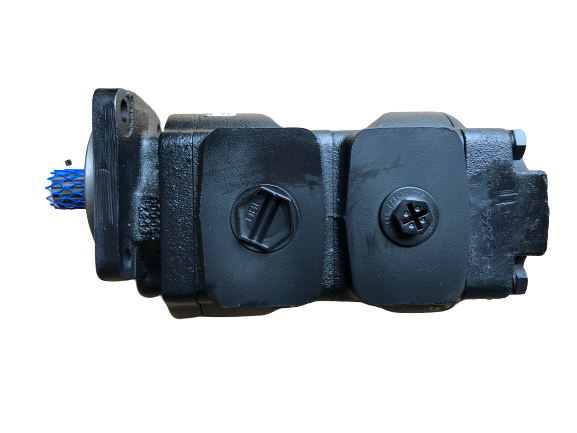

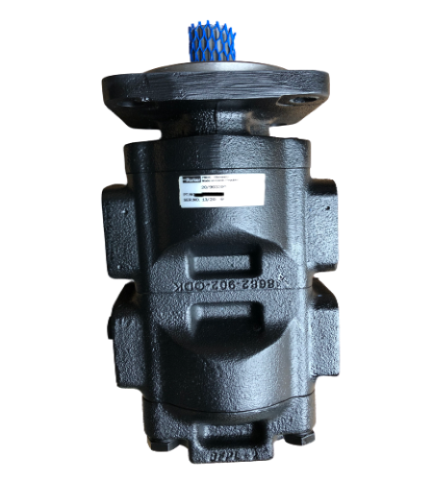

20/903300 Genuine Parker / JCB Twin Hydraulic Pump 33 + 29 CC/REV

20/903300 Genuine Parker / JCB Twin Hydraulic Pump 33 + 29 CC/REV

19 in stock

Regular price €911,62 EUR
Regular price Sale price €911,62 EUR
Sale Sold out
Tax included.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15T Splined shaft
  • SAE B 4 hole mounting flange
  • Front pump displacement: 33cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 250 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/903300 - 4074 - 7029121029- 7029121035

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 35 Manual shift 35KPH
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 20 Power shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 35 Power shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 4CN444 AWS 9802/9510
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 30 Power shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 4C444 AWS 9802/9510
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 20 Manual shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 20 Power shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 30 Sideshift AWS 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 35 Sideshift AWS 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 20 Servo Command 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 20 Manual shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 35 Power shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 4CX444 Sideshift AWS 9802/9510
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 35 Manual shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 3CX444 Sideshift AWS 9802/9520
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 30 Servo Command 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 35 Manual shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 4CX444 SUPER Sideshift AWS 9802/9510
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 30 Power shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 30 Servo Command 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 4CXSM444 Sideshift AWS 9802/9510
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 20 Servo Command 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 30 Servo Command 30KPH 9802/9500
    P
  • UMP, MAIN HYDRAULIC 4074 4CXSM444 SUPER Sideshift AWS 9802/9510
